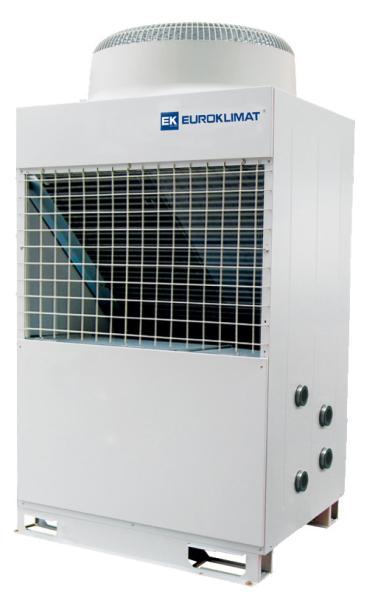

15.5kW Residential Air Conditioners Heat Pump Small Air-cooled
Cold/Hot Water Integrated Unit
Technical data sheet
|Nominal cooling capacity||kW||15.5|
|Nominal heating capacity||kW||17|
|Total power of nominal cooling capacity||kW||5.2|
|Total power of nominal heating capacity||kW||5.3|
|Power supply|| ||380V/3N~/50Hz|
|Flow control|| ||Capillary|
|Water side heat exchanger||Evaporator type|| ||Vacuum braze-welded stainless steel plate heat exchanger|
|Water flow for|
|Water flow for|
|Compressor||Type|| ||Fully hermetic volute compressor|
|Lubricant|| ||Mineral oil (SUNISO 3GS)|
|Fan||Type|| ||Horizontal centrifugal water pump|
|Water pump||Type|| ||Horizontal centrifugal water pump|
|Size of inlet/outlet water pipe connector|| ||Rc1|
|Section area of live line||2|
|Qty. of live lines||PCS||3|
|Section area of null line||2|
|Qty. of null lines||PCS||1|
|Section area of grounding line||2|
|Qty. of grounding lines||PCS||1|
|Unit weight||Net weight||kg||220|
|Water system Accessory kit||Model|| ||EKAC-WS08A|
|Expansion water tank||L||8|
|Size of pipe connectors|| ||Rc1|
■ Working conditions for nominal cooling capacity test: water flow
rate 0.172m3/(h.kw); temperature of outlet water 7°C;
outdoor ambient temperature 35°C.
■ Working conditions for nominal heating capacity test: water flow
rate 0.172m3/(h.kw); temperature of outlet water 45°C;
temperature of outdoor dry/wet bulb 7°C/6°C.
■ The sound level is tested before the unit leaves factory.
Practically, due to environment noise and other factors, the sound
level tested might
be different from those listed in the above table.
■ Please refer to the User Manual for specific operation ranges.
1. Units of this series feature a classic European air conditioner
design (chilled water/heat pump + indoor terminals) for precise
temperature control. The units can provide you with a comfortable,
healthy and graceful working/living environment. The uni ts feature
a heat sink mechanism using circulatory air and needs no cooling
tower. This not only saves the cost of the cooling tower, but also
saves precious building space. Units of this series feature various
models and dimensions to meet different installation requirements.
2. Units of this series are equipped with fully hermetic
compressors which are stable, advanced and reliable. All components
have undergone strict integration and compatibility test to ensure
optimized performance and efficient/energy-saving operation all
year round. The solenoid interlock control function can shut down
the master unit and water pump automatically when all fans have
stopped working, making the unit more energy saving.
3. Long and strict tests prove that units of this series can work
reliably in an environment as hot as 48°C (cooling) or as cold as
-10°C (heating). With a smart split design, all water pipes can be
installed indoor to prevent freezing during cold winters. The units
can work with boilers to meet heating requirements in areas which
are extremely cold in winter. The units feature built-in high/low
pressure protection, cooling freezing protection, winter freezing
protection, compressor overload protection, water pressure-drop
switch etc. to maximize reliability. In case of any failure, the
micro-computer controller provides alarms using sound and
indicators on a real-time basis. Besides unconditional manual
defrosting, the controller also supports efficient auto defrosting
based on multiple parameters during heating operations.
4. The units feature a strengthened vibration isolation case and
multi-grade sound dampening. Thanks to a fully hermetic scroll
compressor and a low-rev high-efficiency heat-sink fan, the
operation sound and vibration of the units are brought down to an
industry leading level. With an innovative auto silence feature for
5. The split series outdoor units feature a super-thin mini-design
which occupies less area on the balcony and does not affect day
lighting. The integrated series units feature top air supply,
compact design, low height, small footprint and a fashionable and
6. The units are small and easy to move, and can be flexibly
installed on rooftops, balconies and other suitable outdoor places
to save precious building space. There is no need to design or
installed a cooling tower, boiler, cooling pump or relevant pipes.
All ten major accessories of the water system are self contained,
including horizontal multi-grade pump, plate heat exchanger, water
tank, hermetic expansion water tank, differential water pressure
switch, water filter, relief valve, auto air discharge valve, auto
water refill valve and sewage discharge valve. The whole central
air conditioner is very easy to install as you just need to connect
some water pipes.
7. The units are equipped with a smart micro-computer control
system to provide various control functions, such as function
settings, parameter viewing, group control, etc. The controller has
three levels of password protection to provide convenient and
reliable operation management. Workload is automatically averaged
among compressors to improve the durability of the entire system.
Auto startup/shutdown can be configured for the central air
conditioner on a weekly basis. All-round safety features make sure
that the units are safe and reliable. With a terminal (indoor unit)
interlock control function, the master unit can start up
automatically as long as one terminal (indoor unit) is running.
EKAC small residential air-cooled cold/hot water units are a new
generation of residential air conditioners
manufactured for the Chinese market based on leadingedge European
design concepts to fit well with various graceful upholsteries.
Units of this series require no cooling tower or special equipment
room. All accessories of the water system are self contained and
can be connected to various indoor terminals through the master
unit. Equipped with a smart controller, units of this series can
bring you all the comfort that a residential central air
conditioner could possibly provide. EKAC small residential
air-cooled cold/hot water units feature various merits such as
smart control, high efficiency, low operation sound, flexible
structure, convenient operation, safe running and easy installation
and maintenance. Units of this series can be widely used in houses,
villas, stores, top-grade apartments, office buildings and other
commercial areas which require separate air conditioning.
